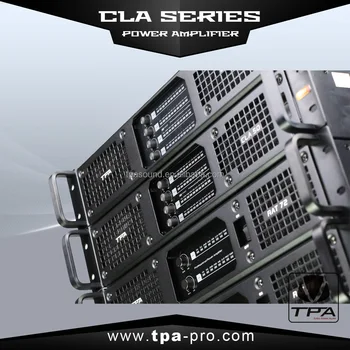

TPA CLA50 4x2100W PA power amplifiers

Shipping:

Less than Container Load (LCL) Service to US

Features

Upgrade tier Class H, matching with the new generation mid-end SMPS product, the effect is ›76%.
Divided into three models with power ranging 650W/1200W/1800W at 8ohm loading, which satisfys the requirements of application projects.
Extremely high power density: amplifier with height-2U/depth-17" of 16kg can provide 7600W continuous output power
Stably drive speakers with 8ohm, 4ohm, and 2ohm loading, meeting requirements from line array to normal array application projects.
Very low harmonic distortion(THD=0.1%)and the ideal frequency response performance(20~20kHz).
Use audio-specfic components and connectors, ensuring higher reliability.
Removable front panel, easy to clean and maintain.
Adopt SMT, AI, ICT full-automatic production and testing technology to ensure the standardization of production and product consistency.
Have perfect and intelligent protection such as overpressure, over-current, short circuit, over-temperature. DC, VHF, clip limiter, so as to prevent damage cause by man-made and environmental factors.

Application

Model	CLA50
Power
8Ω stereo *	1300W×4
4Ω stereo *	2100W×4
2Ω stereo **	2500W×4
8Ω bridge *	4200W×2
4Ω bridge **	5000W×2
Other Specification
Frequency response	20Hz-20kHz(0.5dB/-1.5dB)
THD+N	<0.05%
S/N rate	>90dB
Damping factor	>800(100Hz)
Crosstalk	>60dB
Slew rate	>10V/μs
Input sensitivity	0.775V / 1V /1.4V/ 38dB/32dB/26dB
Input impedance (bal/unbal)	10kΩ/20kΩ
Voltage gain(8Ω)	40.2dB
Output Circuitry	Class I
Cooling	Air flow from front to rear
Protection	soft start,DC,short circuit,over load,clip limit, over heat,progressive volume,VHF
Protection
Connector
Input	XLR
Output	Binding posts & NL4 SPEAKON
Function
Front panel indictor	Power/VU/SIG/Clip/Protect indicator
Front panel	Power switch,volume control knob
Rear panel	stereo/paralle/bridge switch,input sensitivity switch
Rear panel	stereo/paralle/bridge switch,input sensitivity switch
Dimension/Weight
Product dimension	483×451×89 mm
(W×D×H)(mm)
Packing dimension	595×565×170 mm
N.W.	14.2kg
G.W.	16.0kg
Power	Non-removable power cord AC220V/50Hz.±10%

Remark:

*The power is tested under EIA standard.
**The power is tested under the condition of 40ms burst, 1kHz sine wave and 1% THD.
Other data is tested under Q/TPA 1-2008 standard.
TPA reserves the right to make changes in specification without prior notice. The final specification is subject to the user manual.
